Planar EL512.256-H on ESP32
Drive a Planar EL512.256-H (512 × 256, monochrome electroluminescent) panel from an ESP-WROOM-32 (classic ESP32), with an Adafruit GFX compatible driver so the usual drawing, text and font APIs work.
The panel has no frame memory and needs a continuous video stream. The ESP32's I2S0 peripheral in 8-bit parallel (LCD) mode streams a precomputed frame from DMA, so the CPU is free while the panel refreshes.
Status: framebuffer, GFX layer, row encoder and I2S/DMA refresh are implemented and run on hardware: the panel shows a correct image (VCLK 5 MHz, HS and VS checked with the ESP32's PCNT). Updates are not yet tear-free.
Hardware
- ESP-WROOM-32 dev board (
esp32dev) - Planar EL512.256-H, configured for two-bit parallel mode: jumper 2 (DCONFIG) of pin strip PS1 removed, jumper 1 (SELFTST) fitted (datasheet Table 3)
- Datasheet: docs/datasheet/EL512.256-H3 FRB.pdf
- Check the panel's logic-level and supply requirements in the datasheet before wiring.
Wiring
| Panel signal | Panel pin (Table 1) | Function | ESP32 GPIO | DMA byte bit |
|---|---|---|---|---|
| VCLK | J1-13 | Video clock, data latched on rising edge | 18 | I2S0 BCK |
| VID | J1-15 | Pixel data, even columns (x = 1, 3, …) | 19 | 0 |
| TVID | J1-7 | Pixel data, odd columns (x = 0, 2, …) | 21 | 1 |
| HS | J1-11 | Horizontal sync | 22 | 2 |
| VS | J1-9 | Vertical sync (rising edge used) | 23 | 3 |
| ENABLE | J2-6 | Display enable, low = off | 25 | — |
| _LOWPWR | J2-5 | Low-power mode, low = on | 26 | — |
| GND | J1-6, 8, 10, 12, 14, 16 | Signal return | GND | — |
The datasheet numbers columns 1 to 512 from the left; x in the code is 0-based, so x = 0 is column 1 (odd, TVID).
Power (Table 1, Table 4): Vcc1 +5 V logic on J1-3, 4 (4.75–5.25 V, 0.2 A max); Vcc2 +11…+30 V on J1-1, 2 (0.9 A max at 12 V). J1-5 is reserved: do not connect.
The panel inputs are HCT compatible with internal pull-ups of unstated voltage, and the
ESP32 is not 5 V tolerant, so drive them through a 74HCT245 or 74AHCT541 powered from
5 V (see the plan). ENABLE is pulled high inside the panel, so the panel scans while
the ESP32 is still booting and VCLK is not running yet; add a pull-down (for example
10 kΩ) on the buffer's ENABLE input so the panel stays off until begin() starts the
stream. Keep the cable under 300 mm, or add 47 Ω series resistors for up to 2 m.
The pin map lives in include/pins.h.
Timing
| Parameter | Value | Datasheet limit (Tables 5, 6) |
|---|---|---|
| Pixel clock (VCLK) | 5 MHz, 2 pixels per clock | 30 MHz max, keep running |
| HS high (T7) | 256 clocks | 256 in two-bit mode, even |
| HS low (T6) | 16 clocks | 4 clocks min |
| HS period (T8) | 272 clocks = 54.4 µs | 50 µs min |
| Lines per frame | 261 (256 visible + 5 blanking) | 256 rows + T1 |
| Front porch (T1) | 220.8 µs (last row end to VS rise) | 100 µs min |
| Refresh | 5 MHz / (272 × 261) ≈ 70.4 Hz | 70 Hz typ, 75 Hz max |
The datasheet (docs/datasheet/) is the source of truth; if anything here disagrees with it, the datasheet wins.
Layout
platformio.ini build config: envs still_alive (default) and esp32dev
include/pins.h pin map
src/still_alive/ Portal-style end-credits demo (env still_alive)
src/test_images/ test sketch: cycles through 12 test images (env esp32dev)
lib/EL512/ local library
src/EL512Panel.* framebuffer, row encoder, I2S DMA refresh
src/EL512_GFX.* Adafruit_GFX subclass
tools/ import_still_alive.py
test/ unit tests (placeholder)
docs/ datasheet and notes
Build and flash
Requires PlatformIO (CLI or the VS Code extension).
The upload and monitor port is set to COM20 in platformio.ini.
pio run -e still_alive -t upload # end-credits demo
pio run -e esp32dev -t upload # test images
pio device monitor

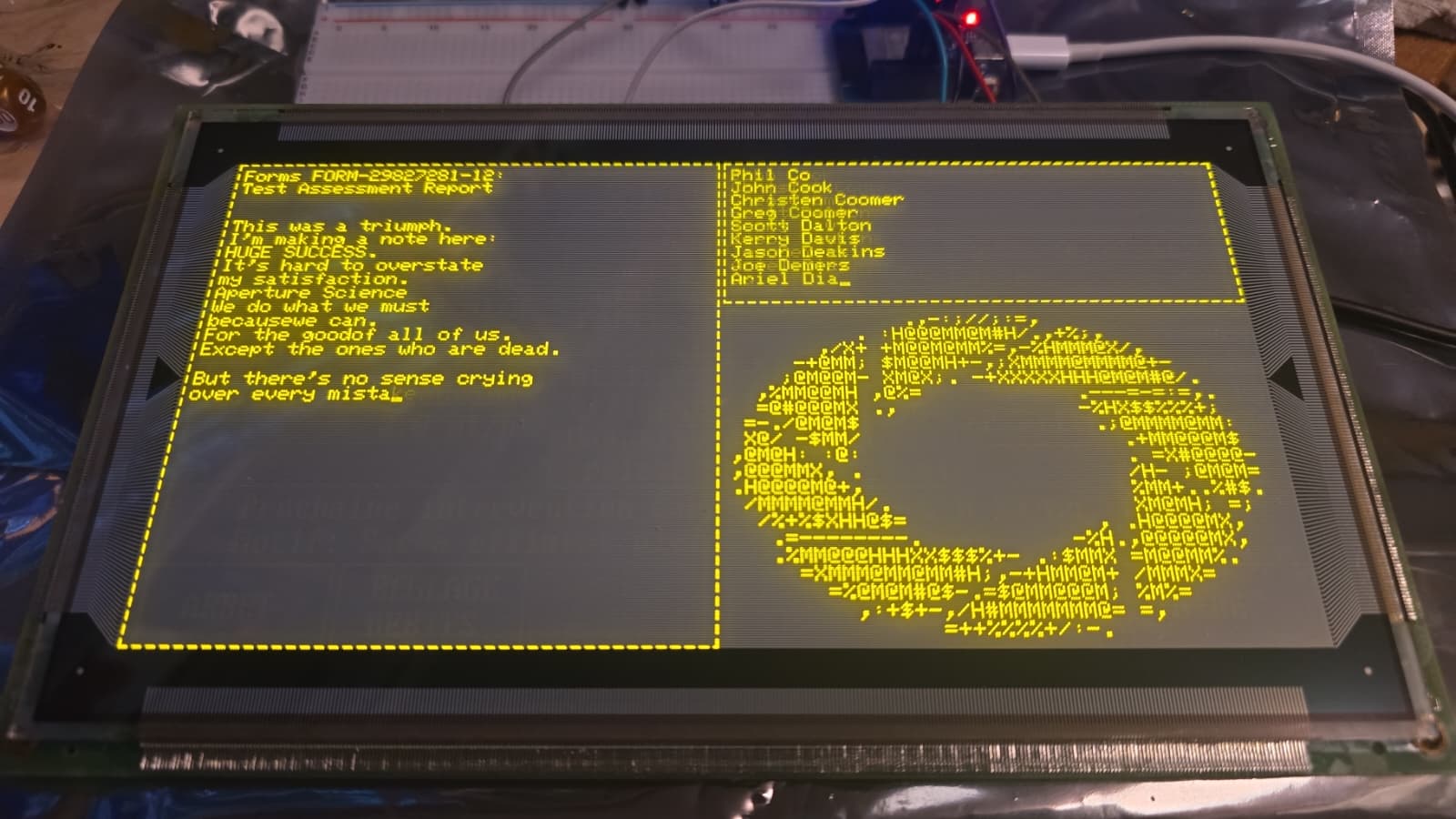

Still Alive demo
A recreation of Portal's ending: timed song text typed into a console on the
left, credits scrolling top right, ASCII art bottom right. The text, timing, art
and credits in src/still_alive/imported.h come from
SDSkyKlouD/still-alive-web and can
be regenerated with:
python tools/import_still_alive.py
pio run -e still_alive -t upload
Without imported.h the demo plays placeholder text. Reset the board and start the
song when the serial log says (7.75 s after reset with the imported data).
Disclaimer: "Still Alive" was written by Jonathan Coulton for Portal (2007). Portal, its credits and ASCII art are © Valve Corporation (see Valve Legal Info); the web recreation they are imported from is by SD SkyKlouD. They are included only for personal, non-commercial use in this hobby project, and all rights remain with their owners. This project is not affiliated with or endorsed by Valve.
Using the driver
#include <EL512.h>
#include "pins.h"
EL512Panel panel({el512pins::VCLK, el512pins::VID, el512pins::TVID, el512pins::HS,
el512pins::VS, el512pins::ENABLE, el512pins::LOWPWR_N});
EL512_GFX display(panel);
void setup() {
display.begin();
display.setTextColor(1);
display.print("Hello");
display.display(); // push the drawing buffer to the refresh stream
}
See docs/README.md for design notes and the plan.
