- net/ha_api: the HTTP requests run in a FreeRTOS task on core 0; loop()
only hands over copies through queues. The web UI's test button polls.
No more 3-4 s loop() stalls once a minute; timeout raised to 5 s.
- Progress bar page element (page format 4, v3 pages are converted)
- Plex user setting (settings v6): {plex_user} in entity ids
- Plex page (examples): watchers, play/pause icon, title, progress
- Bitmaps cached in RAM: a LittleFS read took ~100 ms on every render
and web preview; long JSON lists sent in 2 KB pieces
- Backup includes the refresh settings and the Plex user
Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
1.8 KiB
1.8 KiB
Pages
The dynamic pages on the display, drawn by the ESP32 itself (python tools/make_page_screenshots.py makes these pictures again). The Clock page is built in;
the others are the example pages in examples/home-pages.json
(import them in the web UI, System tab; they use this home's Home Assistant entities).
| Page | |
|---|---|

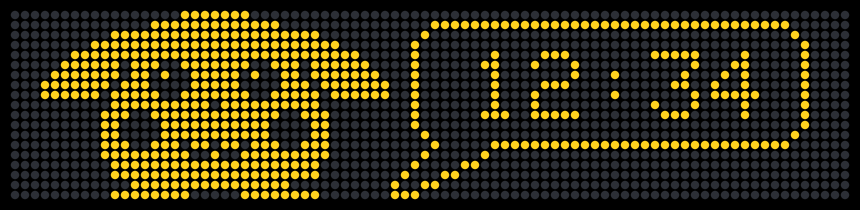

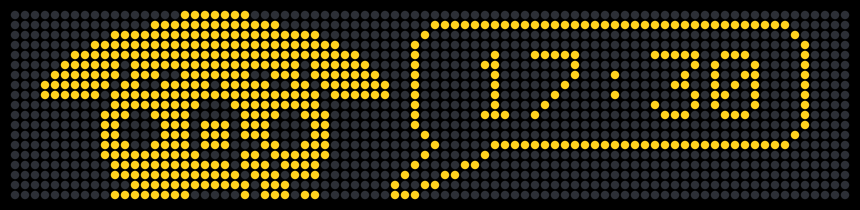

| Clock (built in), day and from 17:00 |   |

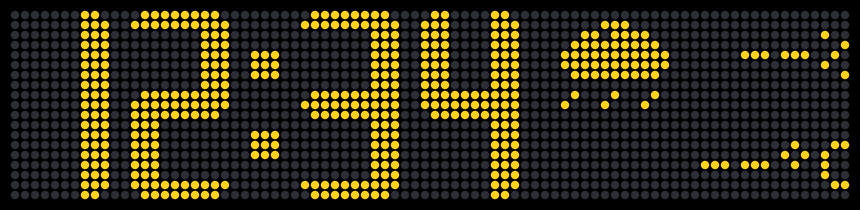

| Weer: clock, weather icon by state, humidity, temperature |  |

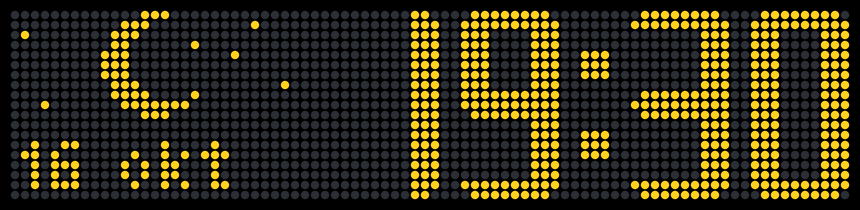

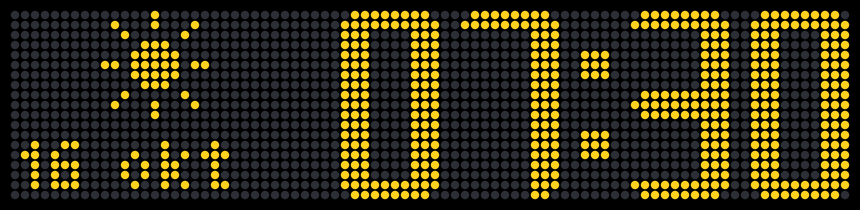

| Dag en nacht: sun from 07:00, moon and stars from 19:00, date |   |

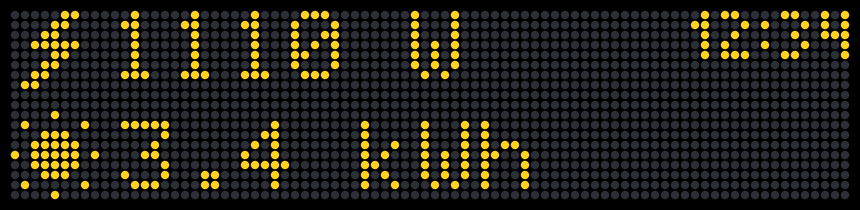

| Energie: net power now, solar today, clock |  |

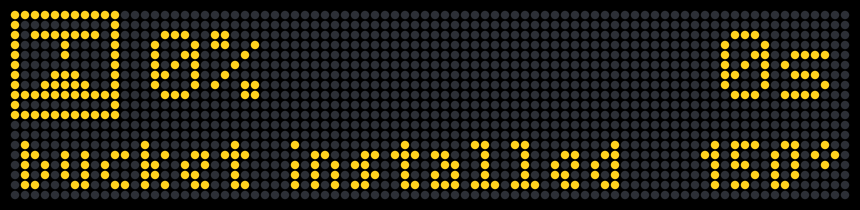

| 3D printer: progress, time left, status message (scrolls), nozzle temperature |  |

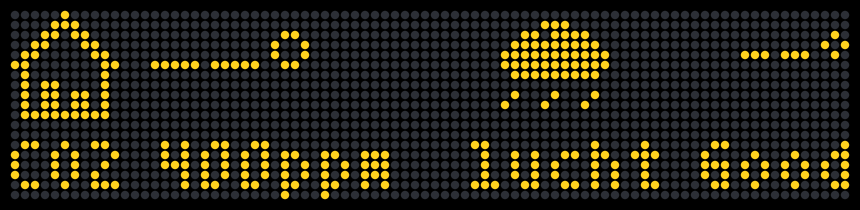

| Binnen: room and outside temperature, CO2, air quality |  |

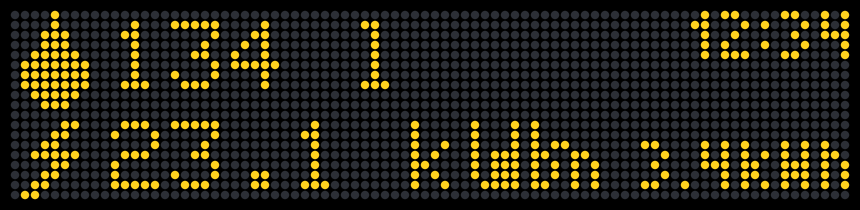

| Verbruik: water and energy used today, solar today |  |

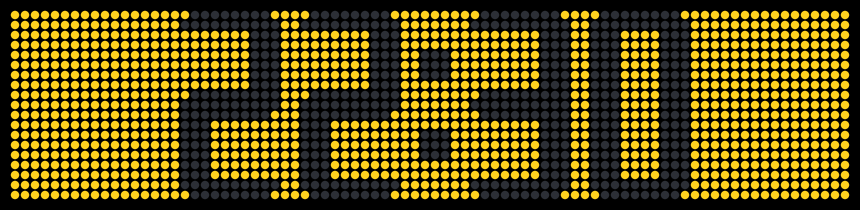

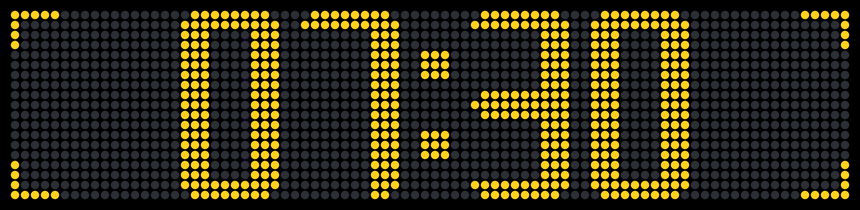

| Grote klok: big clock, inverted from 22:00 |   |

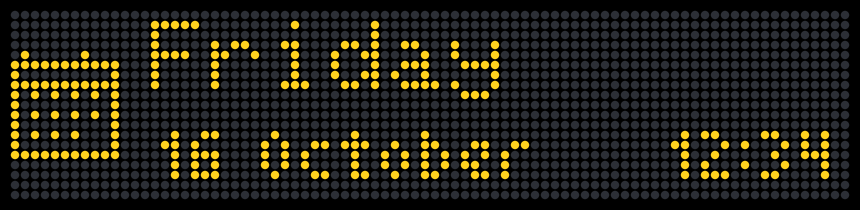

| Datum: weekday and date |  |

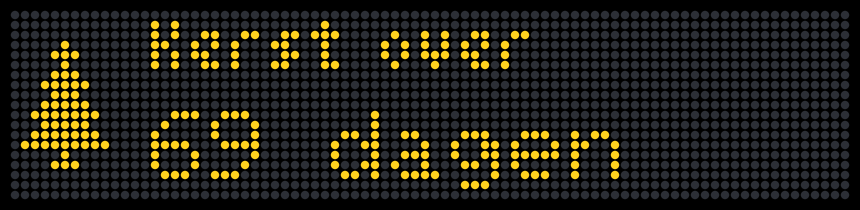

| Aftellen: countdown to Christmas |  |

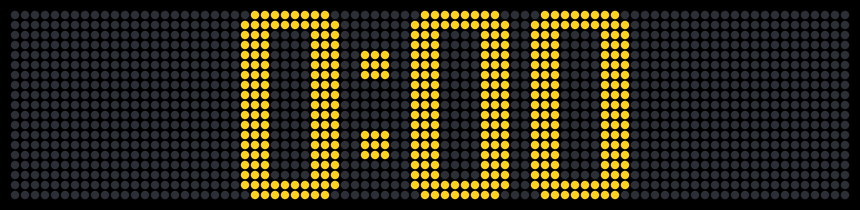

| Stopwatch |  |

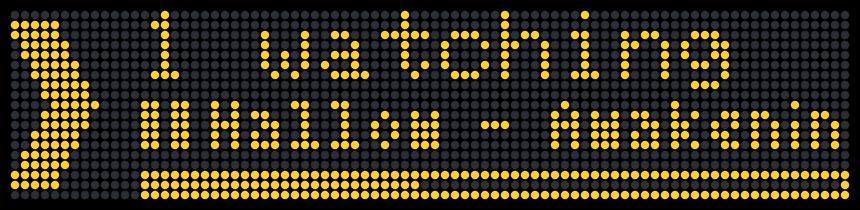

| Plex: how many watch, play/pause, title (scrolls) and progress of the Plex user (Tautulli) |  |
