Pages
The dynamic pages on the display, drawn by the ESP32 itself (python tools/make_page_screenshots.py makes these pictures again). The Clock page comes with the firmware (it can be changed, Reset brings back the original);
the others are the example pages in examples/home-pages.json
with their icons (import them in the web UI, System tab). They use this home's Home
Assistant entities: change them to yours in the page editor (climate.home,
sensor.envoy_000000000000_... and sensor.plex_server are placeholders).
python tools/export_examples.py writes the file again from the pages on the display and
replaces private parts of entity ids by these placeholders.
| Page | |
|---|---|

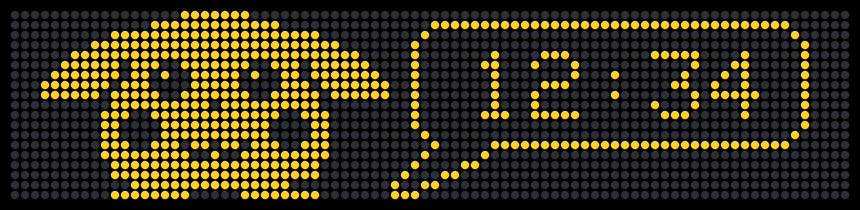

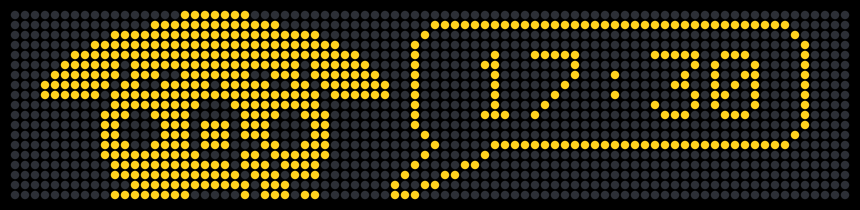

| Clock (from the firmware), day and from 17:00 |   |

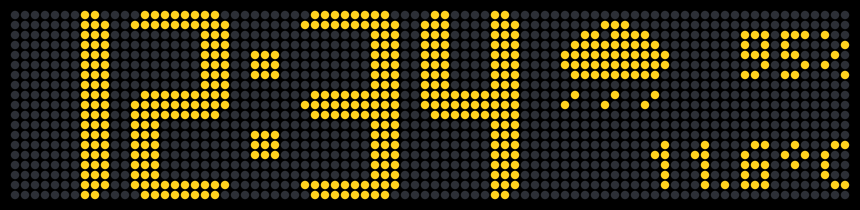

| Weer: clock, weather icon by state, humidity, temperature |  |

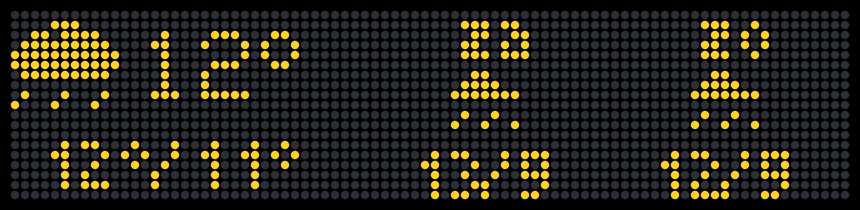

| Verwachting: today (icon, temperature now, max/min) and the next 2 days (weekday, small icon, max/min); needs the forecast sensor |  |

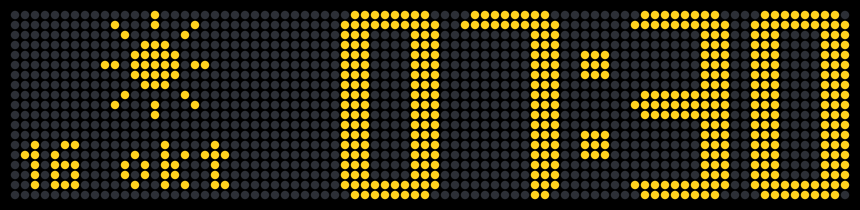

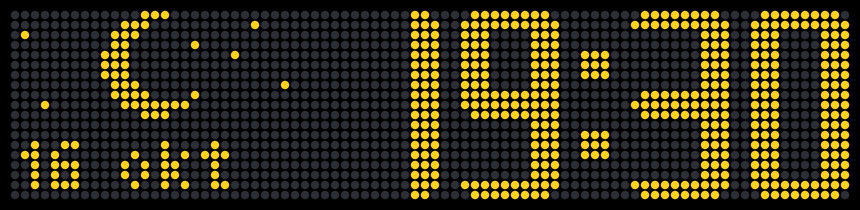

| Dag en nacht: sun from 07:00, moon and stars from 19:00, date |   |

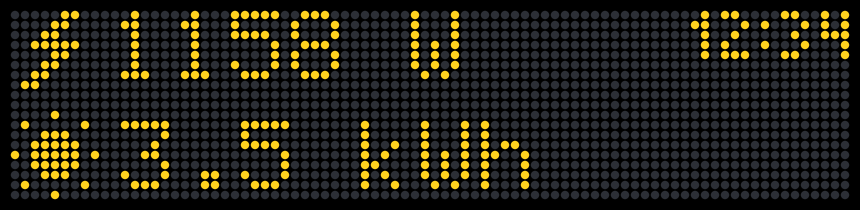

| Energie: net power now, solar today, clock |  |

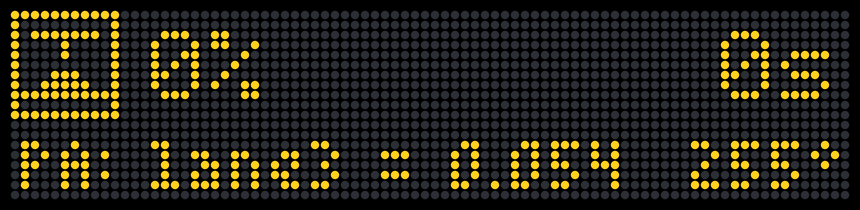

| 3D printer: progress, time left, status message (scrolls), nozzle temperature |  |

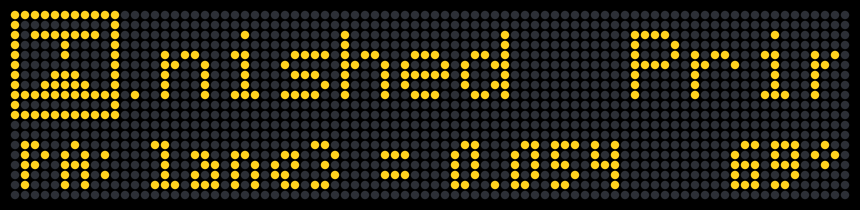

| 3D printer finished: shown for 10 minutes after a print completes (rule), with the status message |  |

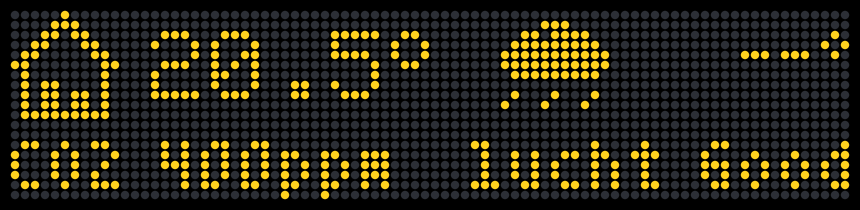

| Binnen: room and outside temperature, CO2, air quality |  |

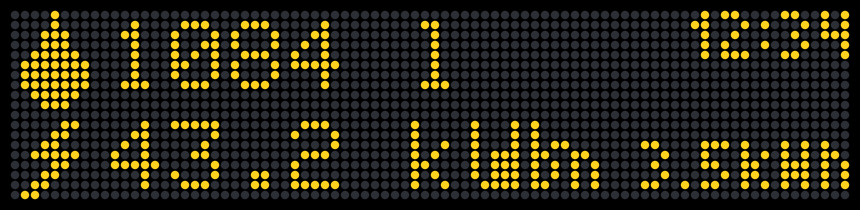

| Verbruik: water and energy used today, solar today |  |

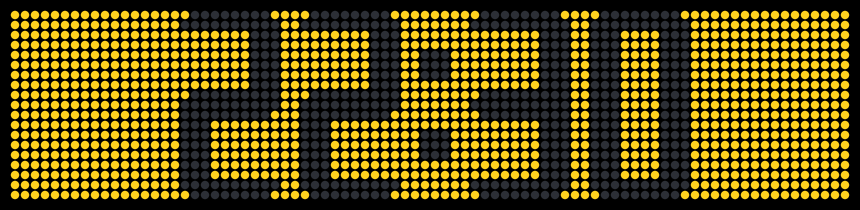

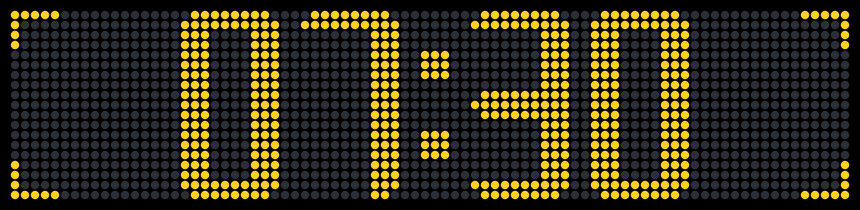

| Grote klok: big clock, inverted from 22:00 |   |

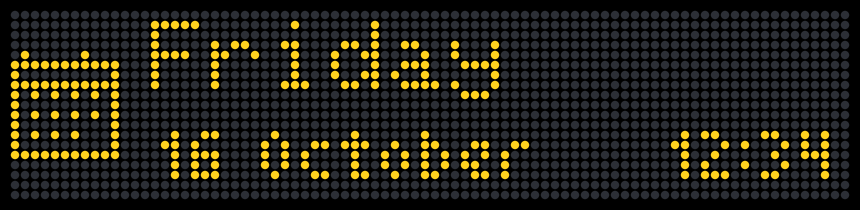

| Datum: weekday and date |  |

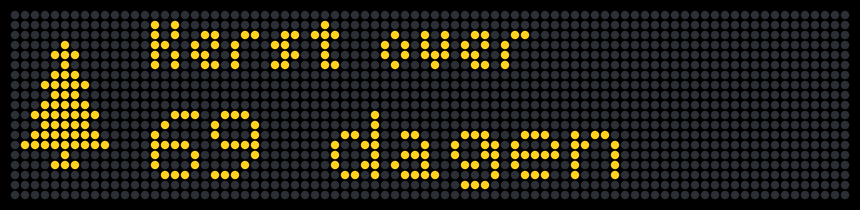

| Aftellen: countdown to Christmas |  |

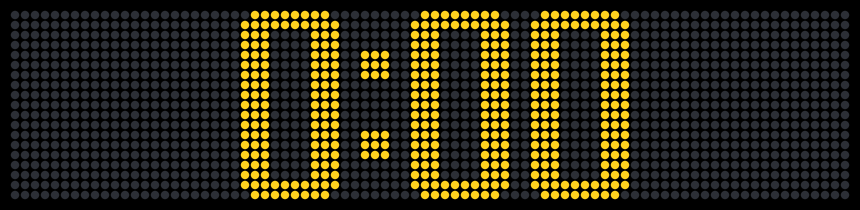

| Stopwatch |  |

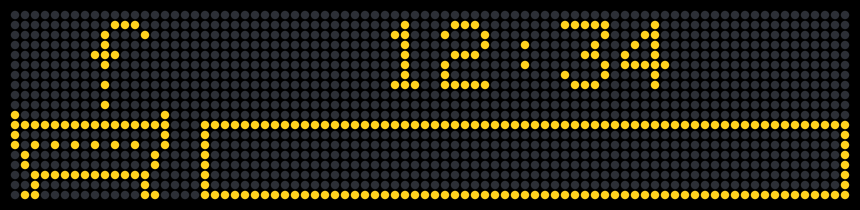

| Bad: how full the bath is (a progress bar from a Home Assistant number) and the clock; a rule shows it while the bath fills |  |

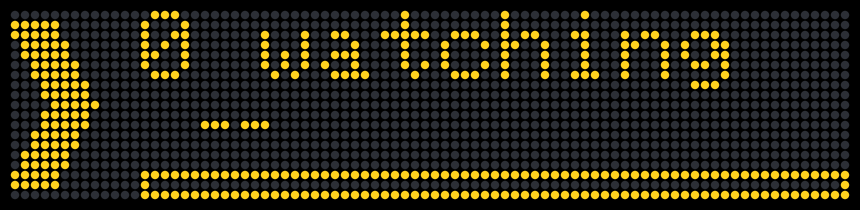

| Plex: how many watch, play/pause, title (scrolls) and progress of the Plex user (Tautulli) |  |
